SundanceŽ Spas Pumps, Hayward LX Pumps, 1990-1994
>

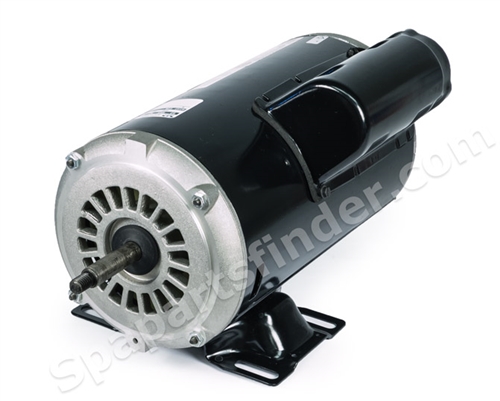

US Motors 3 HP, 1 Speed, 220 Volt - SPH30FL1
Alternative Views:
MSRP $355.00
Sale Price $
289.87
Product Code:
BN40
Qty:
Description
US Motors SPH30FL1 by Nidec Corp (formerly Emerson Motors) Single Speed 240 Volt with stand, threaded Shaft, Thru Bolt, 48 Frame.
Used on Sundance Spa and Jacuzzi Spa Single Speed Pumps
Used on Pumps with part numbers: 6500-341, 6500-263, 6500-763, 6500-269, 6500-769, 6500-266, 6500-766, 6500-349
Cannot be used on the Aqua-Flo used from 1997-1999 part number: 6500-126. Also cannot replace the 2009 or newer motor from Sundance/Jacuzzi that is called LX.

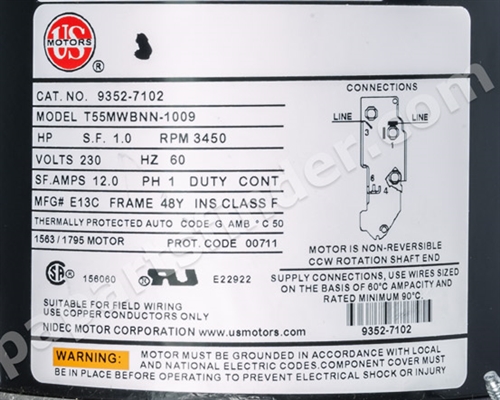

Specifications:
1 Speed
230/240 Volt
12.0 Amps (measured at 6 MBHP with Aquaflo/Gecko wet end) 10.0 Amps (measured at 4.2/2.5 HP with Sundance/Jacuzzi wet end)
48 Frame
Motor rated at 3 HP, 230 Volts
Alternate Part Numbers: SPH30FL1, T55MWBNN-1009, T55MWBNN1009
The difference between the Factory OEM Motor is that ours comes with the original welded bracket on the motor instead of the bracket mount currently used by Sundance. Our motor replaces the original found in your spa that had the mounting bracket welded to it. Make sure that your motor was a 48 frame, Single Speed used on the above pumps listed.
