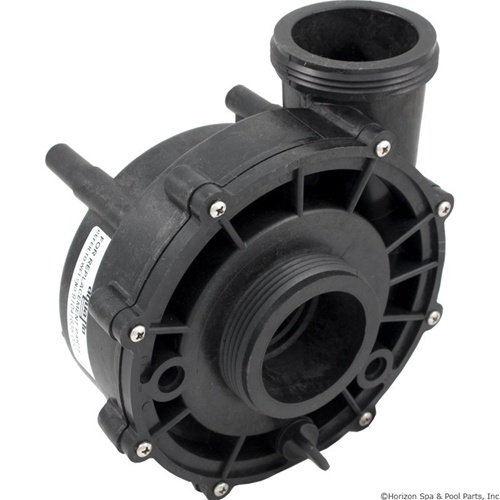

Aqua-flo Pump Wet End 2.5 HP 48 Frame XP2/XP2E 91041825-000
The spa and pool industry use various "Frame" sizes to mount their "wet end" or pump to. A bracket mount motor has a welded base for mounting. These motors can be a 48 or 56 Frame. Other types of motors such as the "C" Frame or Round Face and the Square Flange are all 56 Frame.There are several ways to figure out the Frame size. One is to look at the spec sheet where it says Frame (FR) it might have some letters with it but will have 48 or 56 as the frame size. The other way to determine is to measure the thru bolts (the 4 bolts that run thru the length of the motor and screw onto the wet end or volute of the pump). Measure the distance between the thru bolts, DO NOT measure diagonally but from one bolt to the next bolt.48 FRAME distance between the 2 bolts is 3 5/8 inch56 FRAME distance between the 2 bolts is 4 1/8 inchBecause all manufactures do not call all things the same this is the best way to tell the Frame size.
PLEASE NOTE: AQUA-FLO FMXP FRAME Wet ends, have two different sizes. They used 2 different motor manufactures, Emerson and Magnetek which are different sizes. Sundance used the Emerson from 1997-1999 on the Aqua-Flo pump they used:EMERSON MOTORS: Distance between the 2 bolts is 4 inchMAGNETEK MOTORS: Distance between the 2 bolts is 4 1/8 inch
Pump plumbing sizes are nominal, and not actual outside diameter (OD) of the threaded intake and/or discharge. Use a tape measure and check your old pump thread size against the sizing table
Plumbing Size Pump Thread OD (approx.)
1.5" 2-3/8"
2.0" 3"
2.5" 3-5/8"
