6500-307, 6500-707 JacuzziŽ Spas Pump - 1 Speed, 2.5 HP, 4.2 Brake HP
6500-307, 6500-707 Jacuzzi® Spas Pump - 1 Speed, 2.5 HP, 4.2 Brake HP

MSRP $539.99
Sale Price $483.00

Product Code: 6500-307

Description Applications

Spa Pump for JacuzziŽ Spas

6500-307 (Replaces 6500-707)

For spa models that use this pump see the "Applications" tab above.

  • 1 Speed
  • 2.5 HP / 4.2 Brake HP
  • 230 Volt
  • 48 Frame
  • 12.0 Amps (measured at 6 MBHP with Aquaflo/Gecko wet end) 10.0 Amps (measured at 4.2/2.5 HP with Sundance/Jacuzzi wet end)

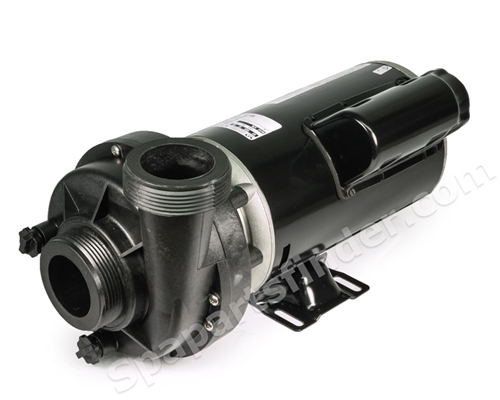

New Motor with Sundance/Jacuzzi Piranha Wet End

Comes Complete as pictured with the motor and wet end/pump housing includes Impeller 6500-295, Seal 6500-805, Oring 6500-290, Front Pump Housing 6500-288 and Rear Pump Housing 6500-311 and Screws (8) 6570-070. Does not come with the power cord or Hose Barb 6540-171*

The Pump is complete with a US Motor and the Sundance/Jacuzzi wet end. The only difference between the Factory OEM Pump, available from us, is that ours comes with the original welded bracket on the motor instead of the bracket mount currently used by Sundance. Our pump replaces the original found in your spa that had the mounting bracket welded to it.

This can be used for other pumps by Sundance by simply adjusting the position of the wet end by loosening the 4 bolts (this is a thru bolt motor) and turning the wet end to the position of the original pump and then retightening the 4 bolts. We send the pump in the 6500-307 position which is in the 12:00 position.

  • Has the welded foot pedestal on the motor itself.
  • We use only a Viton Seal on our Wet ends for long life. The viton seal is designed for harsh chemical environments such as salt, ozone and chemically treated water. These seals are more costly than a standard seal used by most of our competitors.
  • Does not come with power cord.
  • Wiring diagram of the new motor may not be the same as the original motor.
