For spa models that use this pump see the "Applications" tab above.

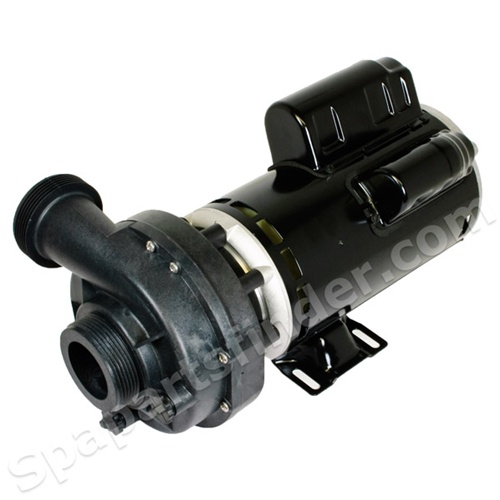

The Pump is complete with an Emerson (US) Motor which Sundance uses in their current Motors. The only difference between the Factory Pump and ours is that ours comes with the original welded bracket on the motor instead of the bracket mount currently used by Sundance. Our pump replaces the original found in your spa that had the mounting bracket welded to it.
This can be used for other pumps by Sundance by simply adjusting the position of the wet end by loosening the 4 bolts (this is a thru bolt motor) and turning the wet end to the position of the original pump and then retightening the 4 bolts. We send the pump in the 6500-257 position which is in the 12:00 position.
This pump and motor comes with a 1 year warranty from date of purchase.
Please Note: We send the wiring diagram for your motor which is also on the ID plate of the Motor. The Motors are 240 Volts with 4 wires: Red (High Speed), Black (Low Speed), White (240 Volt Common) and Green (Ground). Please note the manufacture of your motor and select the correct wiring diagram. It may vary from your original wiring on your original spa motor.
For Single Speed Motor: If you ordered this 2 Speed Pump but needed a Single Speed, then you would hook up the Black (High Speed) and the White (240 Volt Common). This will work as a Single Speed.
This pump can be used for the following pump numbers by rotating the wet end to match the position of the original pump.
